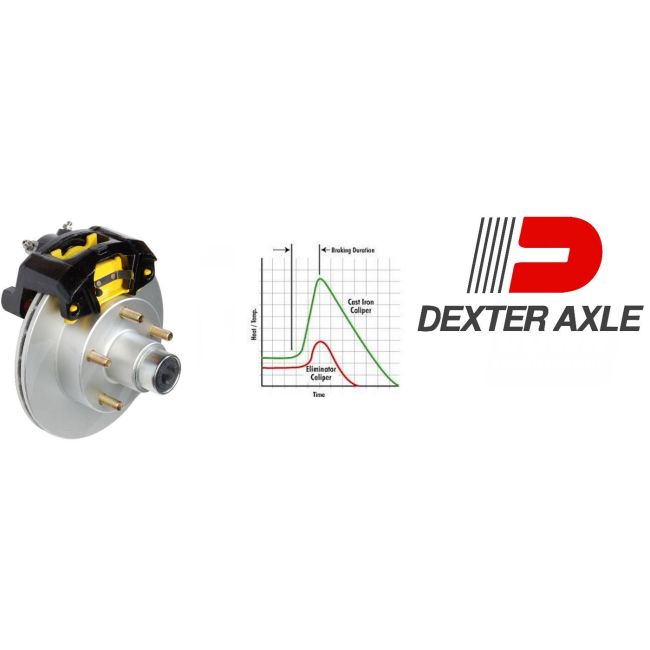

TIEDOWN 9.6" Vented Rotor Disc Brake Kit, 5-Lug #K71-G00-98

Tie Down Engineering Eliminator 9.6" (5-Lug) 'Integral Style' GALVX Coated Vented Disc Brake assembly. Replaces 10" Drum Brakes, mounts to 4-hole axle brake flange. Includes GALVX finish Vented rotor/hub, 1.98" dust cap,wheel bearings & grease seal, lug nuts, galvanized mounting brackets w/stainless steel hardware, aluminum caliper assembly and complete installation instructions.
Advantages:
* E-Coat finish protects the caliper from salt crystallization.
* Stainless Steel caliper slide pins are easily accessible with 7/16" hex heads for quick removal
* Stainless Steel coated brake pad backing plates further reduce areas susceptible to corrosion
* All aluminum caliper, 380 series alloy, sheds heat five times faster than traditional cast iron calipers
* Compact design allows short axle overhangs and provides direct brake line routing back to the axle
* Oil impregnated bronze bushings last longer and slide smoother
* Oversize rubber boot is 50% thicker by design and provides a more positive piston withdrawal
Always use High-Temp. Marine Bearing Grease with disc brakes due to the higher operating temperatures as compared to drum brakes.

ROTOR DIAMETER: 9.6"
REPLACES DRUM DIAMETER: 10"
BEARING SIZE: 1-3/8" x 1-1/16"
# OF STUDS: 5
BOLT CIRCLE: 4-1/2" (13" & Larger Wheels)
AXLE RATING: 3500 lbs.
NOTE: TIEDOWN DISC BRAKES ARE NOT DESIGNED TO BE USED WITH ELECTRIC-OVER-HYDRAULIC BRAKE ACTUATORS THAT PRODUCE MORE THAN 1200 PSI
• YOU WILL NEED 2 OF THESE KITS PER AXLE FOR A COMPLETE INSTALL

Cross Ref# 82113
