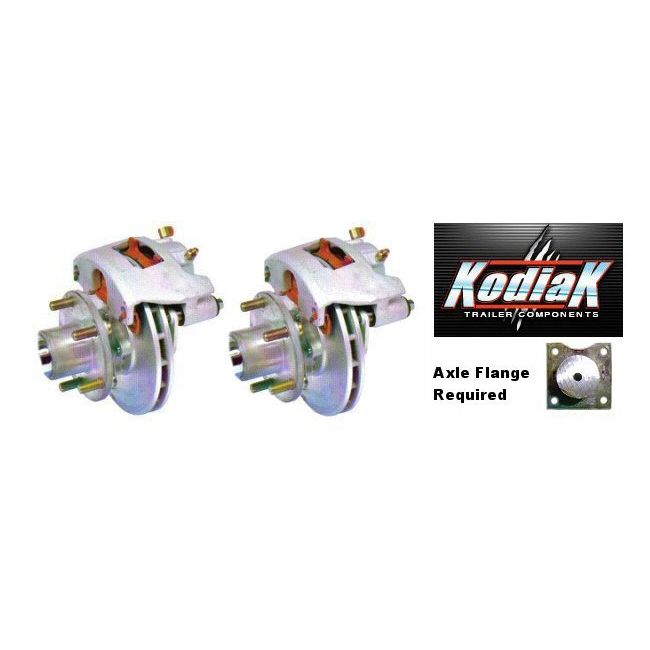

KODIAK 8" Trailer Disc Brake Kit 2k, Gal-Dex #K71-2H-8-2-DDDD

KODIAK 8" GAL-DEX COATED Vented Integral Rotor/Hub kit, Caliper & Mounting Bracket w/Hardware.
Includes Bolt-On bracket that attaches to a notched 4-hole brake flange. Brake flange must be included or added to axle for installation.
3-YEAR KODIAK WARRANTY
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).
The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Caliper mounts to 4 bolt brake flange and fits inside 10" and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads.
NOTE: wheel bearings, grease seal, grease cap and lug nuts are not included with this package

ROTOR DIAMETER: 8" VENTED
REPLACES DRUM DIAMETER: 7"
BEARING SIZE: 1-1/16" x 1-1/16"   or   1" x 1"  (not included)
GREASE SEAL ID: 1-1/4"   (not included)
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (10" & Larger Wheels)
AXLE RATING: 2,000 lbs.

Cross Ref#: 2/RCMHS-8-2-DAC, 2/H-8-2-DDDD
