KODIAK 13" (7K) Trailer Disc Brake Assy, Gal-Dex #K71-133-7-8-DDD-R

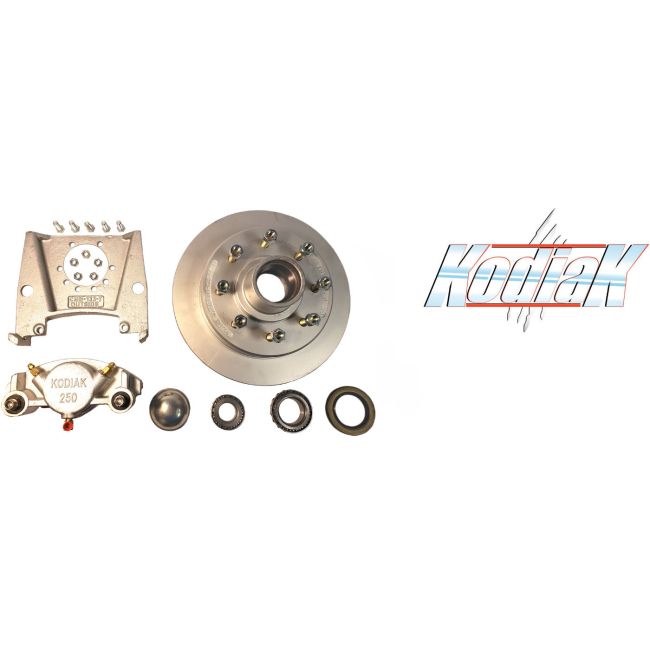

KODIAK 13" GAL-DEX COATED Vented Integral Rotor/Hub assembly, Caliper & Mounting Bracket w/Hardware.
3 YEAR KODIAK WARRANTY
GAL-DEX Coating offers the great value of protection for salt water applications
Integral 13" hub and rotor (one piece), 8-6.5 wheel bolt pattern, 1/2" wheel bolts. Caliper bracket mounts to 5 bolt brake flange and fits inside 16” and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit also includes inner bearing & race, outer bearing & race, grease seal, grease cap and lug nuts.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures as compared to drum brakes.

ROTOR DIAMETER: 13" VENTED
REPLACES DRUM DIAMETER: 13"
BEARING SIZE: 1-3/4" (# 25580 -1.75" x 3.26") x 1-1/4" (# 14125 -1.25" x 2.72")
GREASE SEAL ID: 2.25"
# OF STUDS: 8 wheel bolt pattern, 1/2" wheel bolts
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 7,000 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Cross Ref#: 1HRCM13378DACKIT, 1/H-133-7-8-DDD-R
