KODIAK 12" Trailer Disc Brake Assy, Gal-Dex #K71-1H-12-DDD

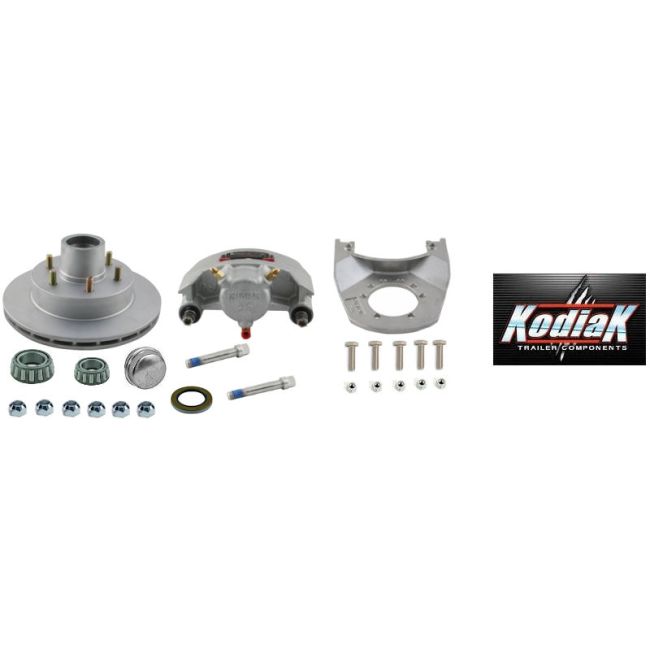

KODIAK 12" GAL-DEX COATED Vented Integral Rotor/Hub assembly, Caliper & Mounting Bracket w/Hardware. One kit required per wheel.
3-YEAR KODIAK WARRANTY             See 'Related Items' below for options to complete your installation

GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).
The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Caliper mounts to 5 bolt brake flange and fits inside 15" and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit also includes inner bearing & race, outer bearing & race, grease seal, grease cap and lug nuts.

LOADRITE AXLE: Due to manufacturing variances this item must be retrofitted with Grease Seal # 5331098 to properly work with LoadRite Axles.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 12" VENTED
REPLACES DRUM DIAMETER: 12"
BEARING SIZE: 1-3/4" x 1-1/4"
GREASE SEAL ID: 2.25"
GREASE CAP SIZE: 2.441"
# OF STUDS: 6 @ 1/2" diameter
BOLT CIRCLE: 5-1/2" (15" & Larger Wheels)
AXLE RATING: 5,200 - 6,000 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Cross ref#: 1HRCM12DACKIT, 1/H-12-DDD-R
