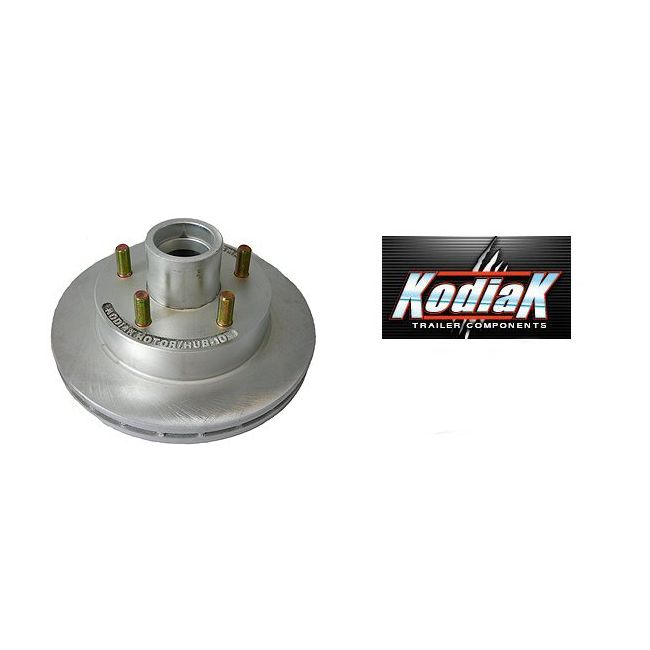

KODIAK 10" Vented Integral Rotor/Hub, Gal-Dex #R/HUB-10DAC

KODIAK 10" GAL-DEX COATED Vented Integral Rotor/Hub trailer disc brake assembly
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust to begin forming in excess of 1000 hours). The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Includes inner and outer races which are already installed. (Bearings, seal, lug nuts and dust cap sold separately)

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then brakes.

EZ-LOADER 3.5k & 3k AXLE NOTE:  Due to manufacturing variances this item must be retrofitted with Grease Seal # 5500103 to properly work with EZ-Loader Axles.


ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
BEARING SIZE: 1-3/8" x 1-1/16" (Not included)
GREASE SEAL ID: 1-11/16"  (1.72") (Not included)
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (13" & Larger Wheels)
AXLE RATING: 3500 lbs.
WARRANTY: 3 Year
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
